Barium tungsten electrode plays a vital role in high-resolution microscopy, mainly used as an electron source, providing a high-quality electron beam to achieve high-resolution imaging.
1. Basic Composition of Barium Tungsten Electrode

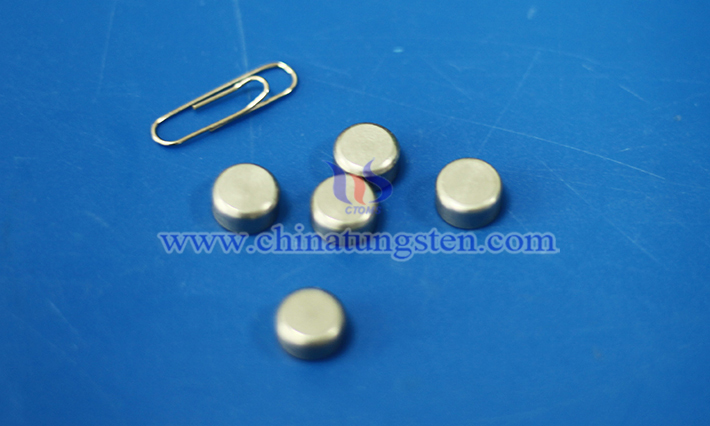

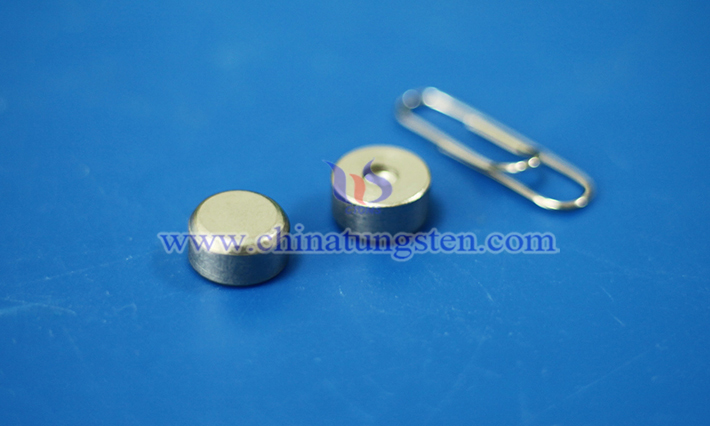

Barium tungsten electrode is usually made of tungsten porous matrix impregnated with barium salt. This combination of materials makes it a commonly used cathode in electron microscopes for generating electron beams, with high stability, long life and other characteristics.
2. Working Principle of Barium Tungsten Electrode
Barium tungsten electrode works by the principle of thermal emission. When the electrode is heated to a high temperature, the barium oxide coating releases electrons to form an electron beam. This electron beam is then accelerated and focused onto the sample to be observed. The quality of the electron beam directly affects the resolution of the microscope and the clarity of the image.
3. The Role of Barium Tungsten Electrode in High-Resolution Microscopy
3.1 Providing a Stable Electron Beam
Barium tungsten electrode is able to produce a continuous and stable electron beam, which is the basis of high-resolution imaging. A stable electron beam can reduce noise and distortion in the image, thereby improving image quality.
3.2 Support High-Resolution Imaging
In high-resolution microscopy, the quality of the electron beam determines the microscope's ability to resolve sample details. The barium tungsten electrode ensures that the microscope can capture the sample's tiny structure and achieve high-resolution images by providing a high-quality electron beam.
3.3 Reduce Thermal Drift and Sample Damage
The thermoemission properties of the barium tungsten electrode enable it to work effectively at relatively low temperatures. This not only reduces thermal drift (image shift) caused by temperature changes, but also reduces thermal damage to the sample by the electron beam, thereby further improving image quality.
